Outdoor Application 33.8 Inch QHD LCD Panel RV338FBM-N00 with 700 cd/m2 Luminance

Brand Name : BOE

Model Number : RV338FBM-N00

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 2000pcs/month

Delivery Time : 10 working days

Packaging Details : factory original packing

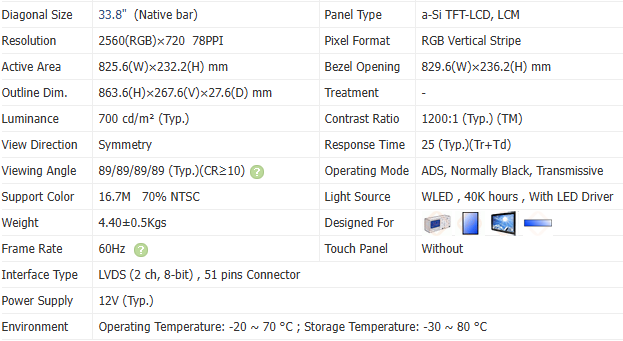

Size : 33.8inch

Resolution : 2560(RGB)×720, QHD

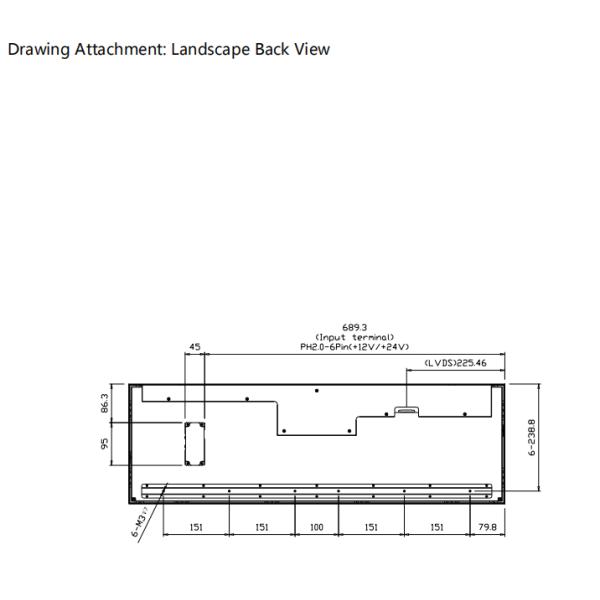

Outline Dimension : 863.6(W)×267.6(H) ×27.6(D) mm

Luminance : 700 cd/m² (Typ.)

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Interface Type : LVDS (2 ch, 8-bit) , 51 pins Connector

Operating Temperature : -20 ~ 70 °C

Storage Temperature : -30 ~ 80 °C

Vibration Level : 1.5G (14.7 m/s²)

Contact Now

RV338FBM-N00 is a 33.8" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Hight Brightness, WLED Backlight, With LED Driver, Bar Display . Based on its features, JB recommend that this model be applied to Industrial, Digital Signage, Outdoor High Brightness, Stretched Bar LCD etc.
